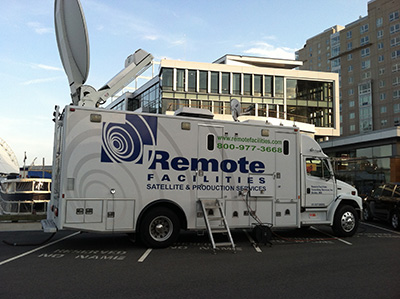

Millenium One

SPECS: Weight - 24,000 #s
Length - 34' bumper to bumper
Width - 8' Height 12'9"

Download/Print Spec Sheet >>
Download/Print Floor Plan >>

24-HR BOOKING:

Ann Marie Stephens
Phone: 781-246-8300

CAMERAS & LENSES

• 4 - Sony HXC-100 HD Cameras / Digital Triax / Cobras for fiber
• 2 - Canon 55X with servo
• 4 - Fuji 18.1 x 8.5 HH lens (2 w/X2) 1 - 5.5 WA
• 2 - Vinten Pan Heads
• 4 - Sachtler Pan Heads
• 4 - Studio Configurations with 5.1 Color VF
• 4 - Hand-Held Configurations
• 4 - Full-Function CCU w/ Joystick RCP Panels


PRODUCTION

• FOR A Multi-Format Hanabi Switcher
• Leitch 16 x 16 VAA Router
• 4 - AJA FS- 1 Frame syncs and cross convertors
• Leitch stereo A/V DAs
• Evertz cross conversion
• Black Magic 40x40 3G Router
• Yamaha 02R96 and 01V

AUDIO

• YAMAHA O2V96 Digital mixer with AES / DANTE
• DBX 160 Limiters
• Tek 760 Phase scope
• Tascam CD-01U Pro player
• Patchable Wohlers
• 4 - Powered Fostek Speakers
• Rane delays

MICROPHONES

• 4 - ECM- 77B
• 4 - MD-46 Sticks
• 4 - Beyer Shotguns

COMMUNICATIONS

• 6-Channel Assignable RTS Intercom
• 4-Channel Studio Tech IFB 8 User Stations
• 2 - Telos Links
• 4 - Cell Phones
• 6 - Motorola Walkie Talkies
• 1-4 line / 10 ext ATT Phone system
• Patchable Modem Ports
• Zeus 4-Wire System with 4w/2w Converters
• Wireless LAN

GRAPHICS

• Per Request


CABLE

• DIGITAL TRIAX- 4000'
• DT-12- 3000'
• Video Looms (5 wire) - 1000'
• Fiber TAC 12 - SM - 3000'

OUTBOARD MONITORS

• 2-15" LCD
• 2- 9" LCD
• 2-20" 16 x 9 flat screen


KU UPLINK FACILITIES

• MCL Dual MT-3400 HPPA
• Andrew 2.4 M Antenna
• 4 - RD - 70 HD IRDs
• 4 - port NO POL RESRICTIONS
• 4- Adtec EN-81/91 Encoders
• 2 - Adtec 422 HD encoders/ Mpeg 2/4 W/ MUX 8 chans
• Adtec EN-81 Line - 4:2:0/4:2:2 with BISS”1”/BISS”E”
• DEK TEK ASI Stream analyzer
• FOR A Multi-Viewer with 16-Channel On-Screen Audio Monitoring
• Redundant / dual path HD/SD/Phase Combined
• 16-Channel Marshall Audio Monitoring with Dolby™ E
• Dual Advent Upconvertors
• Analog/HD SDI. Embedded. Discrete AES
• Dolby™ Stream Analyzer
• Harris 950 HD Scope with Eye Pattern
• Dual Newtec modulators DVB-S DVB-S2, QPSK, 8PSK, 16PSK
• HD DirecTV
• Registered with PARS/ACE for Canadian Travel and Operations

RECORD DEVICES

• 2 - BMD Hyperdeck Studio SSD Drive record / Playback devices
• 1 - XD cam recorder/ player
• 2 - AJA Key Pro Rec / player
• 2 - DV cam Pro Res DV record/ player

POWER REQUIREMENTS

• 100-AMP Single Phase
• 120-volt CAMLOK CONNECTORS
• Registration - Massachusetts
• Plate # 55203
